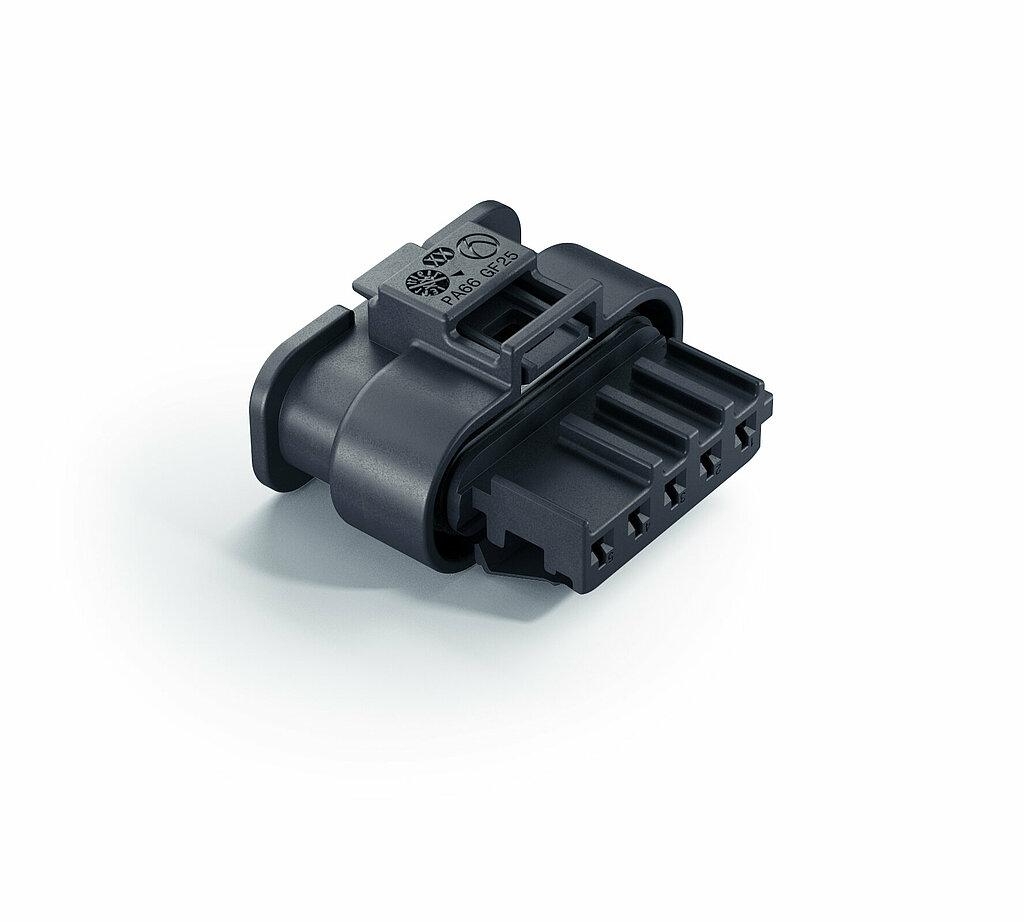

1.2 SealStar Female
Lightweight designs and efficiency are calling for even smaller components.
The SealStar housings are a robust and top-performing generation of connectors with minimum space requirements. Renowned OEMs and their system manufacturers were involved in the development process.
The innovative design of the housings makes them compatible for the use with a range of different contacts.
Order Sample
Johannes Ulrich is your Contact for Individual Questions
Global Product Manager Low Voltage Connectors
| GENERAL PRODUCT INFORMATION | 1.2 SealStar F LL | ||
| Product No. | 2way 805-120-… 3way 805-121-… 4way 805-122-… 5way 805-123-… 6way 805-124-… | 2way 872-857-… 3way 872-858-… 4way 872-859-… 5way 872-860-… 6way 872-861-… 8way 872-862-… |
| Gender of Article | female (F) | |
| Product Specification | EPS-100011-00 | |
| Process Specification | EVS-100013-00 | |
| TECHNICAL PRODUCT INFORMATION | ||
| Number of Pins | 2,3,4,5,6,8way | |
| Pitch of Terminals | 4.0 mm | |
| Wire Size Range | max. 1.00 mm2 | |
| Sealed Application | sealed | |
| Coding of Article | available | |
| Voltage Class | ≤ 60 V | |
| Number of Terminal Rows | 1 row | |
| CPA (Connector Position Assurance) | with CPA | without CPA |
| TPA (Terminal Position Assurance; Secondary Lock) | with TPA latch | |
| Type of Compatible Terminal (Primary Lock) | Locking Lance (LL) | |
| Contact Carrier Material | PA66 GF25 | |
| MATCHING PARTS | ||
| Compatible Terminal System no distribution via Hirschmann Automotive | TE Connectivity MCON 1.2 LL: C-1452674 (drawing) Kostal MLK 1.2-Sm: DOC00079128, DOC00072546 (drawing) | |
| Cavity Plug Diameter (ELA & ELB) no distribution via Hirschmann Automotive | Ø 3.55 mm connector cavity SWS is given on the corresponding terminal drawing | |
| INTERFACE DESCRIPTION OF THE CONNECTOR | ||
| Plug Socket Interface Drawing | 872-975-…00 | |
| GENERAL PRODUCT INFORMATION | 1.2 SealStar F LL | ||||
| Product No. | 4way 807-550-… 6way 807-551-… 10way 807-602-… | 8way 805-031-… 12way 806-344-… 12way 807-479-… 16way 805-587-… 16way 807-445-… | 8way 805-031-… | 12way 806-360-… |
| Gender of Article | female (F) | female (F) | female (F) | |
| Product Specification | EPS-100087-00 | EPS-100011-00 | (n/a) | |
| Process Specification | EVS-100089-00 | EVS-100013-00 | EVS-100061-01 | |
| TECHNICAL PRODUCT INFORMATION | ||||
| Number of Pins | 4,6,10way | 8,12,16way | 12way | |
| Pitch of Terminals | 4.0 mm | 4.0 mm | 2.54 x 3.0 mm | |
| Wire Size Range | max. 1.00 mm2 | max. 1.00 mm2 | max. 1.00 mm2 | |
| Seald Application | sealed | sealed | sealed | |
| Coding of Article | available | available | available | |
| Voltage Class | ≤ 60 V | ≤ 60 V | ≤ 60 V | |
| Number of Terminal Rows | 2 rows | 2 rows | 2 rows | |
| CPA (Connector Position Assurance) | with CPA | with CPA | without CPA (2x lateral latches) | without CPA |
| TPA (Terminal Position Assurance; Secondary Lock) | with TPA latch | with TPA latch | with TPA latch | |
| Type of Compatible Terminal (Primary Lock) | Locking Lance (LL) | Locking Lance (LL) | Locking Lance (LL) | |
| Contact Carrier Material | PA66 GF25 | PA66 GF25 | PA66 GF25 | |
| MATCHING PARTS | ||||
| Compatible Terminal System no distribution via Hirschmann Automotive | TE Connectivity MCON 1.2 LL: C-1452674 (drawing) Kostal MLK 1.2-Sm: DOC00079128, DOC00072546 (drawing) | TE Connectivity MCON 1.2 LL: C-1452674 (drawing) Kostal MLK 1.2-Sm: DOC00079128, DOC00072546 (drawing) | Kostal MLK 1.2-Sm: DOC 00072546 Kostal MLK 1.2-S: DOC00079128 (drawing) | |
| Cavity Plug Diameter (ELA & ELB) no distribution via Hirschmann Automotive | Ø 3.55 mm connector cavity SWS is given on the corresponding terminal drawing | Ø 3.55 mm connector cavity SWS is given on the corresponding terminal drawing | TE Connectivity Product No. 1-1452424-2 1-1452424-1 | |
| INTERFACE DESCRIPTION OF THE CONNECTOR | ||||
| Plug Socket Interface Drawing | 808-170-…00 | 808-015-…00 | 808-124-…00 | |
| NUMBER OF PINS | CPA | ORDER/PRODUCT NO. | CODING | TWISTED PROTECTIVE SHROUD | NEUTRAL PLUG SOCKET INTERFACE | BENCHMARK VALIDATION STATUS | ||
| 2 | - | 872-857-... | available | available | 872-975-...00 | ZVEI: TK41/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-120-... | ZVEI: TK41/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| 3 | - | 872-858-... | available | available | 872-975-...00 | ZVEI: TK31/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-121-... | ZVEI: TK41/SG4 | USCAR2: T4/V4/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| 4 | - | 872-859-... | available | available | 872-975-...00 | ZVEI: TK41/SG3 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-122-... | ZVEI: TK41/SG4 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| ✓ | 807-550-... | just standard possible | 808-170-...00 | ZVEI: SG4 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||
| 5 | - | 872-860-... | available | available | 872-975-...00 | ZVEI: TK41/SG4 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-123-... | ZVEI: TK41/SG3 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| 6 | - | 872-861-... | available | available | 872-975-...00 | ZVEI: TK41/SG4 | USCAR2: T2/V2/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-124-... | ZVEI: TK41/SG4 | USCAR2: T3/V2/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| ✓ | 807-551-... | just standard possible | 808-170-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | ||
| 8 | - | 872-862-... | available | available | 872-975-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-031-... | 808-015-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | |||
| - | 805-031-... | 872-975-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | |||
| 10 | ✓ | 807-602-... | available | just standard possible | 808-170-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| 12 | ✓ | 806-344-... | available | available | 808-015-…00 | ZVEI: TK41/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7 /IPX9K2 |
| - | 806-360-... | 808-124-…00 | ZVEI: TK41/SG4_AG | USCAR2: S2 | IP-CODE: IPX7 /IPX9K2 | |||
| 16 | ✓ | 805-587-... | available | available | 808-015-…00 | ZVEI: TK31/SG2 | USCAR2: T2/V3/S3 | IP-CODE: IPX7 /IPX9K2 |
1 Tested with the temperature collective from LV124
2 Protective cap recommended for IPX9K
